Underground Pipe Repair in Naples

The Problems:

  • Is sewage backing up in Naples?
  • Do you keep getting clogged drains?
  • Do you call have to keep calling in a drain rooter company, over and over again?
  • Do you have vertical cracks in the pipes in your high-rise condominium building?

The Solution:

The solution to your problem is sewer pipe lining, the most advanced method of underground pipe repair.

The Benefits:

  • New pipe in about three hours
  • No digging up your property
  • The new pipes are as strong as the old pipe
    50-year warranty.
  • Less mess and noise: no jackhammers and concrete saws to deal with.
  • Building is left intact, no need to excavate walls
  • No need to restore your landscaping because this is the trenchless, no-dig method.
  • No open sewer pipes, which allow sewer rats access to your home or building.
  • No workers have access to your condos
  • No toxic air from cut sewage pipes

Sewer Pipe Lining, the Most Advanced Method of Underground Pipe Repair

Sewer pipe lining uses the most advanced plumbing technology to fix your drain problems. You’ve probably heard it referred to by several names, including:

  • Pipe lining
  • Cured-In-Place Pipe, or CIPP
  • Trenchless
  • No-dig


Pipe Lining

The innovative process uses a long special fabric tube that is saturated with resin. This hardens in about 2 to 4 hours. It is inserted into the old, damaged sewer pipe. As it hardens, a new pipe-within-a-pipe is created.

This new pipe reduces the interior diameter about 5%, not enough to noticeable affect flow or capacity, according to experts. The new pipe meets or exceeds the highest industry standards. It is engineered for a 100-year lifespan. You get a 50-year warranty.

The Installation

The first step to pipe lining is to clean out the interior of the original sewer pipe with high-pressure hydro jetting. This gets ride of sludge and build-up and obliterates tree roots. A video camera inspection is done to pinpoint the exact problem and its location.

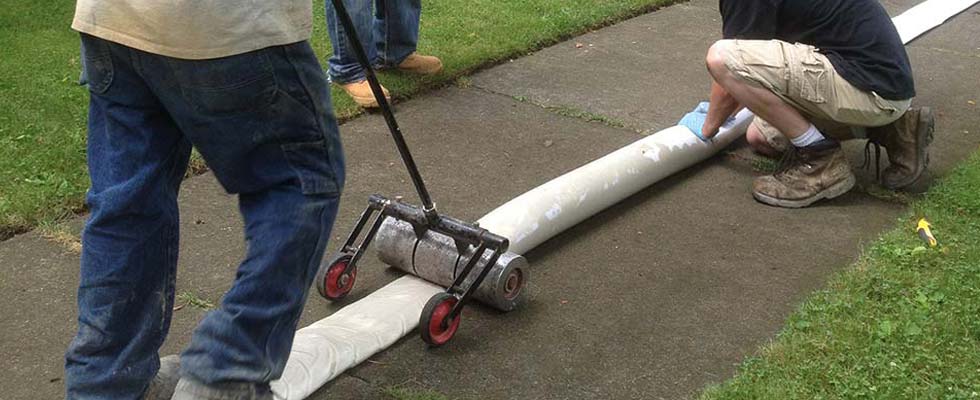

At this point the old pipe is ready for the pipe relining. A long tube made from a special fabric is cut to the length needed to handle the area of the damaged pipe that requires relining.

The resin is prepared by mixing the part A and part B epoxy resins, which are self-hardening. The fabric tube is totally saturated with this mix.

The tube is then pulled through the old pipe or blown into it using air pressure. Then the tube is inflated with air for 2 to 4 hours. This allows the resin time to harden, or cure.

Another video camera pipe inspection is done to make sure the process was accomplished correctly. At this point, you have a fully functioning new pipe.

Pipe Lining is Strong and Durable

The new pipe is effective for load-bearing pipes that are positioned under roadways, building footers and railways. If a section of a clay or cast iron sewer pipe is damaged, the new inner lining pipe will act as a standalone pipe. It is as strong and durable as the original pipe.

Pipe Lining Is NOT the Epoxy Spray-On Method

Don’t confuse this method with epoxy spray-on systems. In the case of drinking water pipes, a food-grade epoxy is sprayed inside a pipe to act as a liner. But it won’t work for load-bearing pipes.

This method is inappropriate for most major plumbing problems because it is prone to damage. For example, if the ground shifts or settles, the epoxy lining will crack and the water under pressure within the pipe will leak.

The exception is the case when thicker layers of epoxy, up to 4 mm, are applied. This is used on fire-suppression hydrant water supply pipes and water mains. In these instances, the heavier coating can add structural strength.

It Works with All Types of Pipes

Pipe lining works with:

  • Clay Pipes
  • Drinking Water Lines
  • Sanitary Sewer Pipe
  • Cast Iron Pipes
  • Golf-Course Overflow Drainage Pipes
  • Storm Drain Replacement
  • HVAC Pipes

You Can Replace Just Damaged Parts, Not the Entire Pipe

With pipe lining, it is possible to do a sectional repair. You can reline just the part that is damaged. For example, with clay pipes you can have the cracked area or the part with the root intrusion relined.

With cast iron pipes in apartments and homes, it makes sense to reline it all. That’s because all the pipes are the same age and have experienced the same wear and tear. When one part starts to leak or develop problems, you can safely assume the rest will follow in a short time. So it is cost-effective to do the entire pipe.

Types of Problem It Fixes

This is an effective method for a wide range of common pipe problems. Here is a look at two of them.

Constant clogs and backups. Around your home, do you constantly have drains clogging? Do you call the plumber, then need to call him again in a month or two?

Do you go through the mess of a sewage backup, then call the drain rooter. The problem is fixed for a short time, but then you need to call him again. And again?

You are probably dealing with tree roots in your pipe. Roots need water and sewage pipe provide a constant source. Roots grow in at the joints, causing cracks and leaks in the process.

The roots keep getting bigger and bigger, until the pipe is clogged. Rooters can break through the roots, but they simply grow back.

The best approach is to use hydro jetting to get rid of the tree root, Then add new pipe lining to fix the damaged old pipe.

Cracked and leaking high-rise pipes. Do your have vertical cast iron sewer pipes and rain drains in your high-rise? After 30 years or so, they often develop vertical cracks.

You can use conventional methods that involve cutting through walls to replace the pipes. But it is messy, noisy, inconvenient and time-consuming.

The better approach is installing an inner pipe lining, which is durable and strong.

Overview of When Pipe Lining Is Used

This method is appropriate for a wide range of problems, including:

  • Pipes that have rotted beneath the floor of a factory, restaurant or other commercial establishment
  • Damaged sewer lines experiencing water infiltration or exfiltration
  • Clay pipes that have deteriorated
  • Cast iron pipes that have corroded
  • Storm water lines that are damaged
  • In high-rises, cracked vertical internal gutters and downspouts damaged in a hurricane
  • Pipes damaged from roots
  • Cracked pipes or offset joints, due to earthquakes or the earth settling
  • Costs and Warranty

Costs vary, but as a rule trenchless pipe rehabilitation is less than the cost of using the conventional sewer re-pipe method. Relining 4” cast iron pipe will run about $125 per foot outdoors and $140 inside. That is a general, ballpark figure. A technician will need to check the work and give you an estimate.

The warranty is 50 years for materials and labor.
